Introduction

The ChartDB API enables programmatic access to manage and auto-update your database diagrams. It supports authenticated requests using API keys, follows standard HTTP methods and response codes, and accepts JSON-formatted request and response bodies. Use the API to sync your schema changes, automate diagram generation, and integrate ChartDB into your CI/CD workflows or internal tools.

​
Base URL

All API requests should be made to the following base URL:
https://api.chartdb.io/api

​
Authentication

To authenticate your requests, include an API key in the Authorization header:
Authorization: Bearer ch_123456789
Your API key can be found in your ChartDB dashboard settings. Keep it secure and never share it publicly.

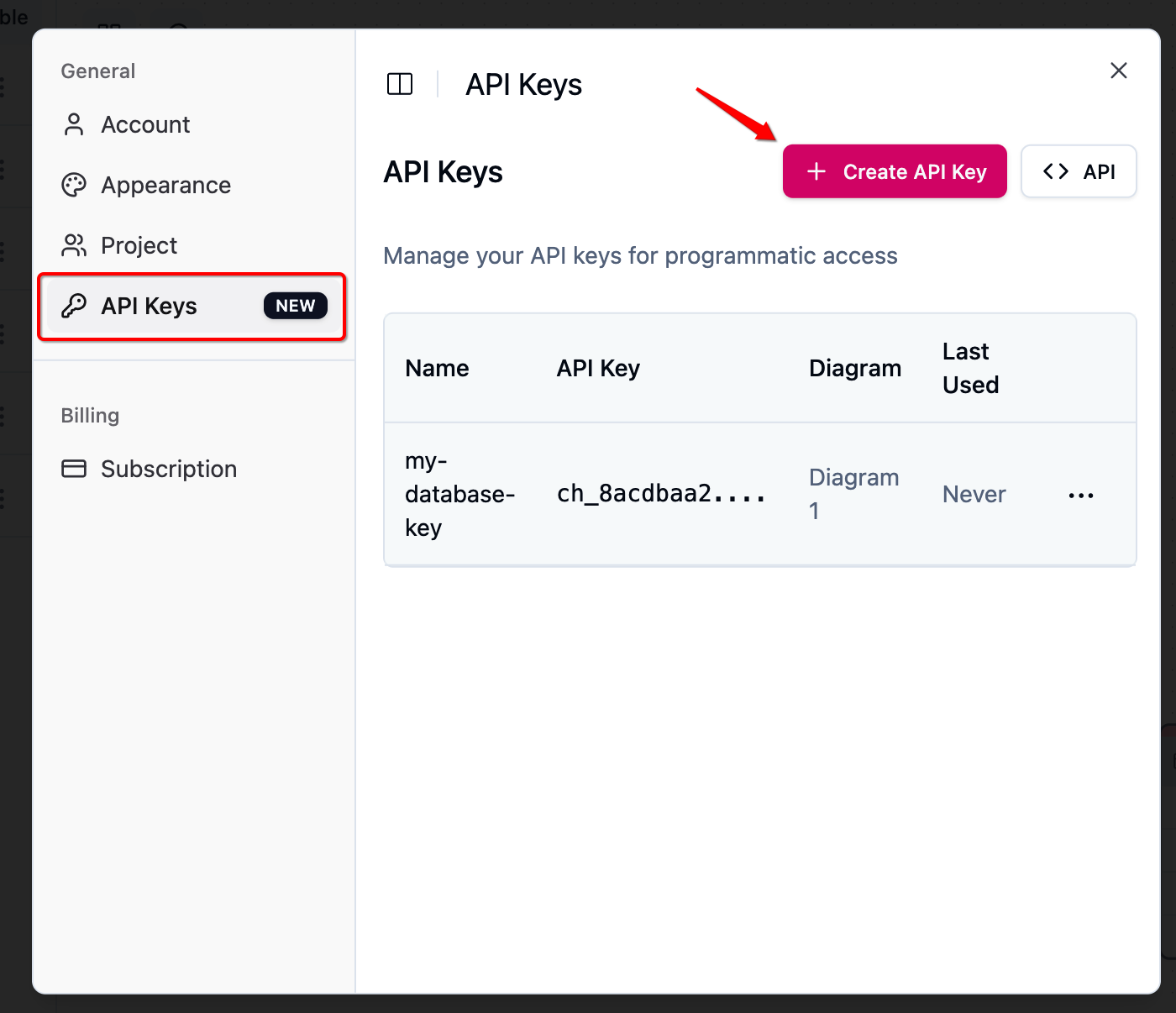

Create an API Key

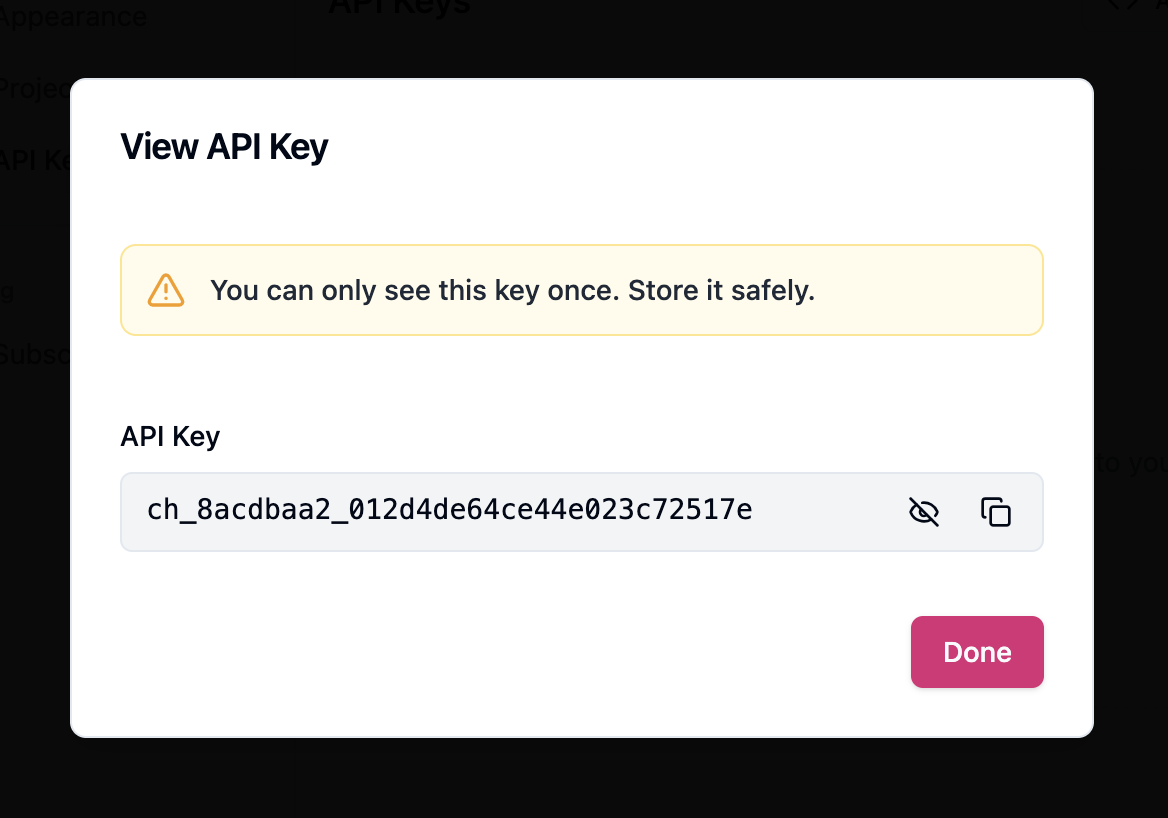

Copy your API Key

​
Response Format

All responses are returned in JSON format. Successful responses will include status & message fields:
{
  "status": "success",
  "message": "Diagram updated successfully"
}
Error responses will include status & message fields:
{
  "status": "error",
  "message": "Invalid API key"
}

​
Request Format

For POST and PUT requests, send data in JSON format with the appropriate Content-Type header:
Content-Type: application/json

​
API Versioning

The current version is api. We include versioning in the URL path:
https://api.chartdb.ioo/api/update_diagram
Future versions will be announced with appropriate migration guides and deprecation notices.
